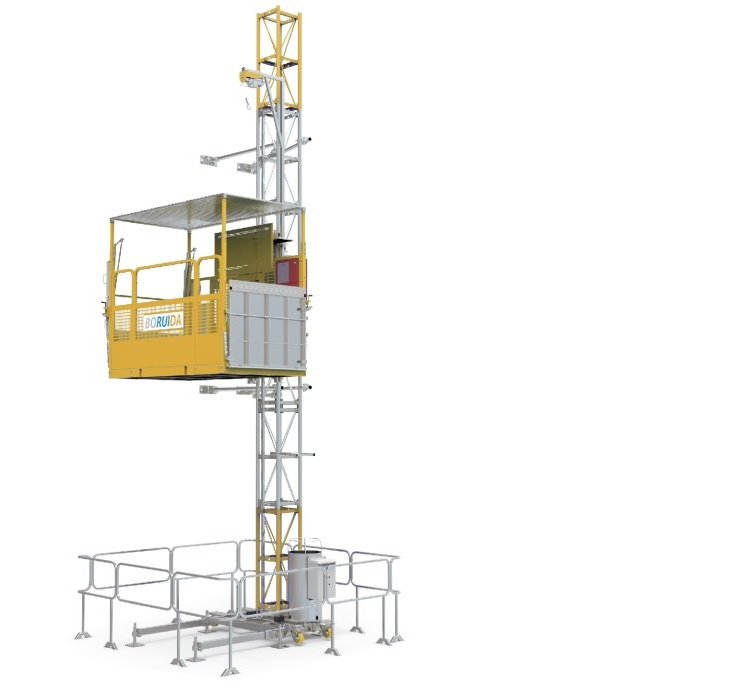

| BORUIDA MATERIAL HOIST PARAMETER SHEET | ||||||
| Model | BORUIDA TP75 | BORUIDA MH75 | BORUIDA TP100 | BORUIDA MH100 | BORUIDA TP150 | BORUIDA MH150 |
| Payload | 750kg | 1000kg | 1500kg | |||
| Passenger number | 6 | 0 | 8 | 0 | 12 | 0 |
| Lifting speed(m/min) | 12 | 24 | 12 | 24 | 12 | 24 |
| Platform size(WxL) | 1.5*2.6m | 1.5*2.8m | 1.5*3.0m | |||
| Motor | 2*5.5KW | 2*9.3KW | 2*11KW | |||
| Mast size(L*W*H) | 450*450*1508mm | |||||
| Rack modulus | 5 | |||||
| Max height | 150m | |||||
| Wall-tie distance | 6m | |||||
| Max suspended height | 4.5m | |||||
| Power | 380V/50HZ | |||||
| BORUIDA MATERIAL HOIST PARAMETER SHEET | ||||||
| Model | BORUIDA TP75 | BORUIDA MH75 | BORUIDA TP100 | BORUIDA MH100 | BORUIDA TP150 | BORUIDA MH150 |
| Payload | 750kg | 1000kg | 1500kg | |||
| Passenger number | 6 | 0 | 8 | 0 | 12 | 0 |
| Lifting speed(m/min) | 12 | 24 | 12 | 24 | 12 | 24 |
| Platform size(WxL) | 1.5*2.6m | 1.5*2.8m | 1.5*3.0m | |||
| Motor | 2*5.5KW | 2*9.3KW | 2*11KW | |||
| Mast size(L*W*H) | 450*450*1508mm | |||||
| Rack modulus | 5 | |||||
| Max height | 150m | |||||
| Wall-tie distance | 6m | |||||
| Max suspended height | 4.5m | |||||
| Power | 380V/50HZ | |||||
